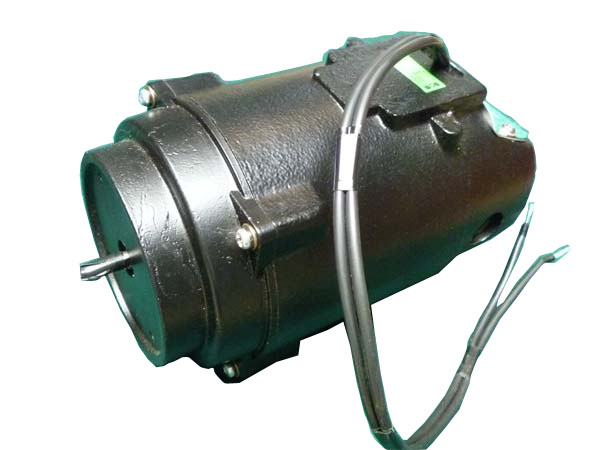

Pump Motor

Pump Motor Pump Motor

Technical Specification

TYPE I/P SUPPLY AMPS
(A)
WATTS
(W)
RPM dBA Admissible
Ambient Temp :
Weight
Kg
S.M-1 230V, 1Ø, 50Hz 0.55 140 14000 88 60 3.6
S.M-2 230V, 1Ø, 50Hz 0.65 170 16000 88 60 4.2
S.M-3 230V, 1Ø, 50Hz 1.6 375 17000 95 60 2.5

Note: Values obtained in no load condition

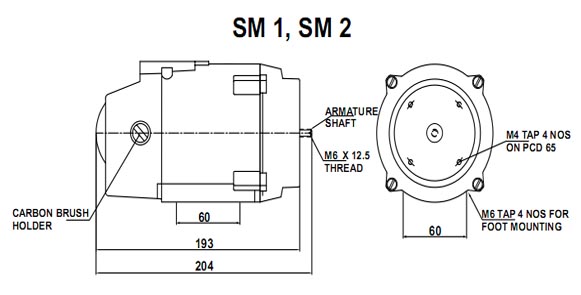

Product Drawing

Product Drawing
