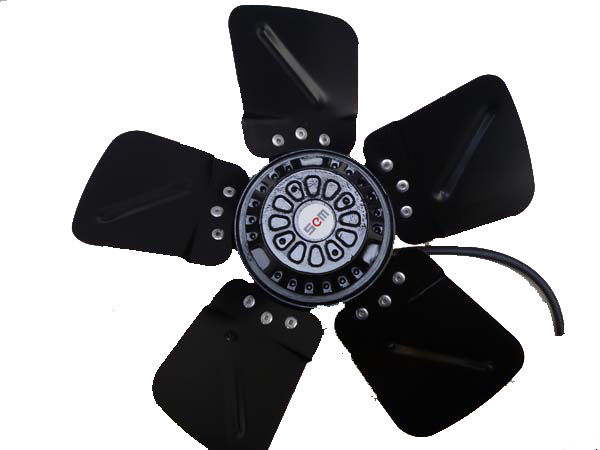

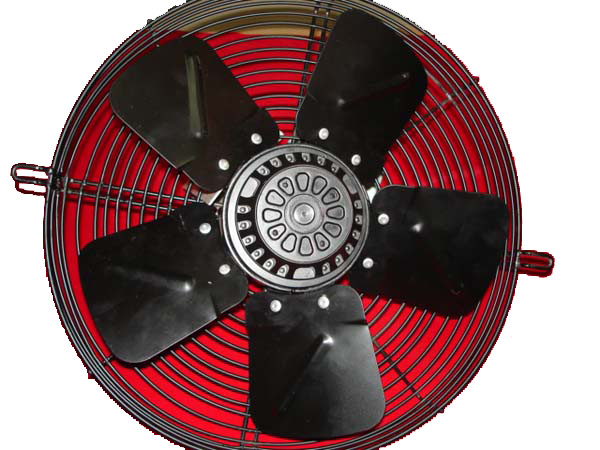

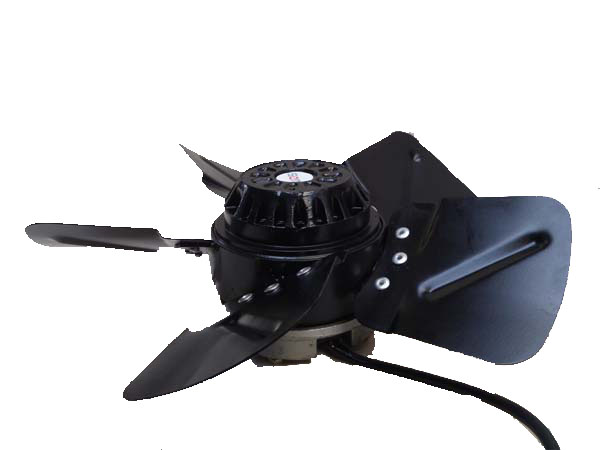

Axial Fan External Rotor Rivitted Impeller
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | Static-Pr (mm-wc) |
dBA | Cap. µf |
Fan Dia D(mm) |
Height H(mm) | Admissible Ambient Temp : |
Weight Kg |
|
| (CMH) | (CFM) | ||||||||||||
| CM 350 B4/S4 | 230V, 1Ø, 50Hz | 0.65 | 165 | 1400 | 2900 | 1706 | 22 | 64 | 5 | 348 | 110 | 60 | 4 |
| CM 400 B2/S4 | 230V, 1Ø, 50Hz | 1 | 220 | 1350 | 4200 | 2471 | 26 | 69 | 6 | 398 | 120 | 60 | 4.5 |
| 14 AF 3B4/S4 | 415V, 3Ø, 50Hz | 0.4 | 175 | 1400 | 2900 | 1706 | 22 | 64 | - | 348 | 110 | 60 | 4 |
| 16 AF 3B4/S4 | 415V, 3Ø, 50Hz | 0.5 | 220 | 1350 | 4200 | 2471 | 26 | 69 | - | 398 | 120 | 60 | 4.5 |
| 18 AF 3B4/S4 | 415V, 3Ø, 50Hz | 0.6 | 280 | 1350 | 5800 | 3412 | 28 | 68 | - | 446 | 135 | 60 | 5.7 |

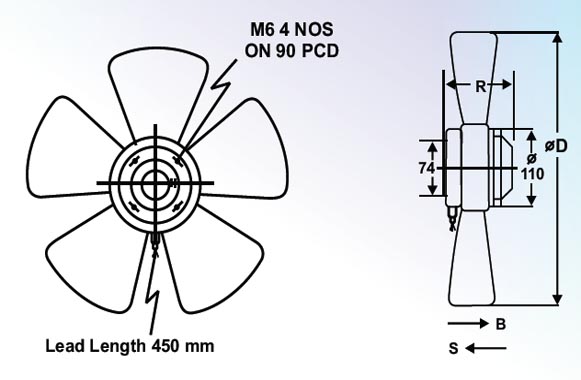

Product Drawing

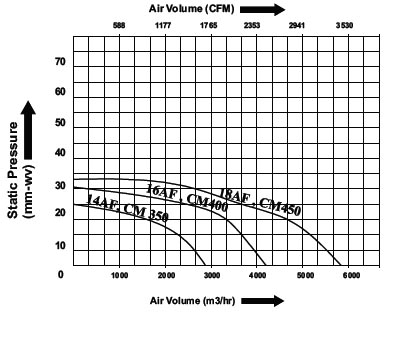

Performance Chart
