Double Inlet Forward Curved Impeller
180 Series
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | Static-Pr (mm-wc) |
dBA | Cap. µf |
Admissible Ambient Temp : |
Weight Kg |
|
| (CMH) | (CFM) | ||||||||||
| SDB 180 S2 | 230V, 1Ø, 50Hz | 4.2 | 950 | 2550 | 2150 | 1265 | 70 | 80 | 15 | 60 | 14 |
| SDB 180 T2 | 415V, 3Ø, 50Hz | 1.25 | 750 | 2550 | 2150 | 1265 | 70 | 80 | - | 50 | 14 |
| SDB 180 S4 | 230V, 1Ø, 50Hz | 1.2 | 260 | 1350 | 1300 | 765 | 22 | 67 | 5 | 60 | 14 |

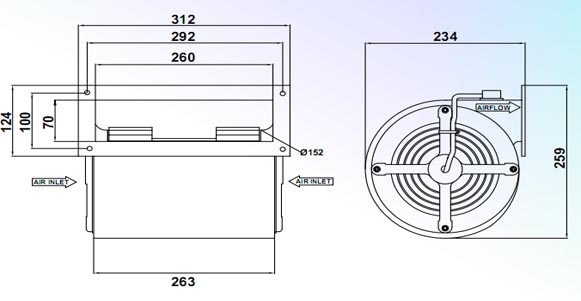

Product Drawing
Performance Chart
