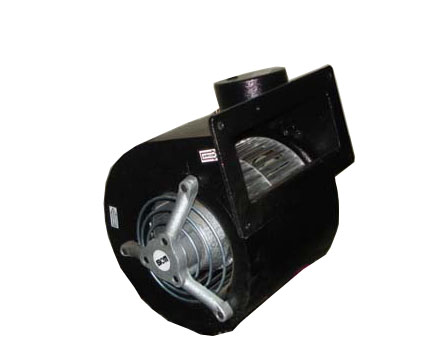

Double Inlet Forward Curved Impeller
150 Series
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | Static-Pr (mm-wc) |
dBA | Cap. µf |
Admissible Ambient Temp : |
Weight Kg |
|
| (CMH) | (CFM) | ||||||||||
| SDB 150 S2 | 230V, 3Ø, 50Hz | 2 | 450 | 2600 | 1200 | 706 | 50 | 76 | 12.5 | 60 | 8.5 |
| SDB 150 T2 | 415V, 3Ø, 50Hz | 0.75 | 430 | 2600 | 1200 | 706 | 50 | 76 | - | 60 | 8.5 |
| SDB 150 S4 | 230V, 1Ø, 50Hz | 0.4 | 100 | 1440 | 620 | 365 | 14 | 61 | 4 | 60 | 805 |
| SDB 150 T4 | 415V, 3Ø, 50Hz | 0.65 | 130 | 1450 | 620 | 365 | 14 | 61 | - | 60 | 8.5 |

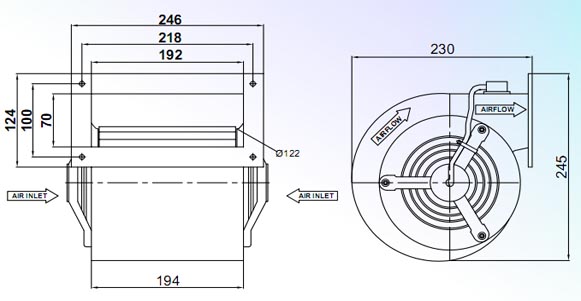

Product Drawing

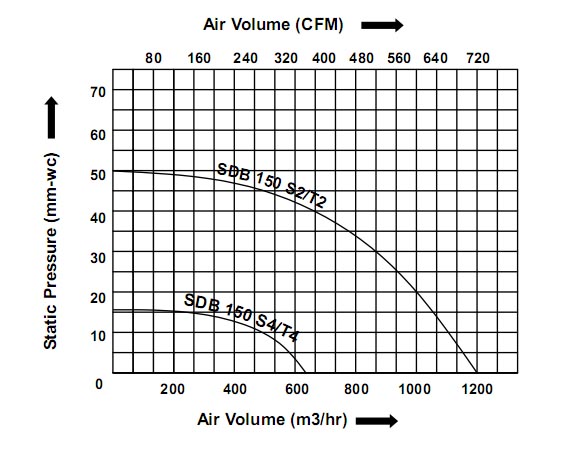

Performance Chart
