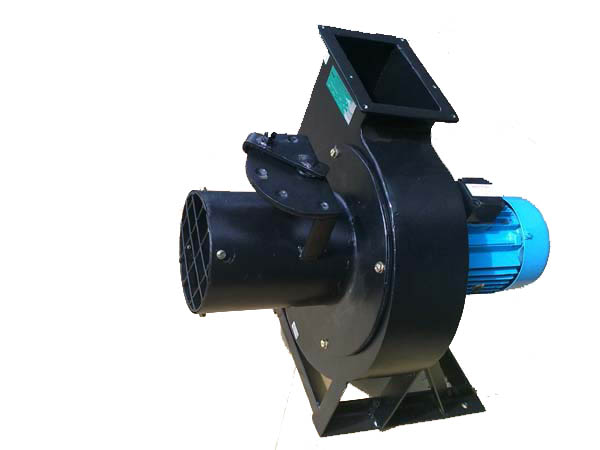

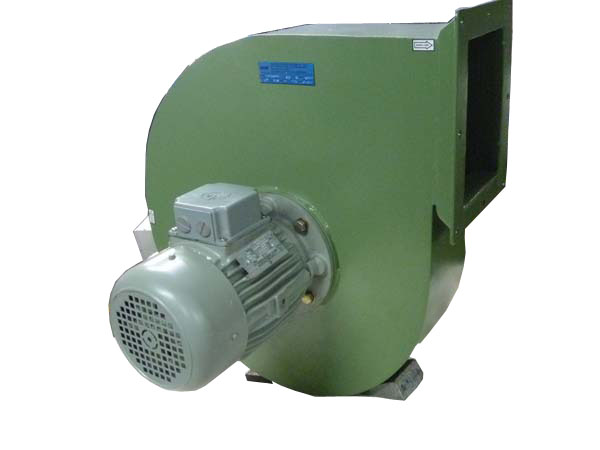

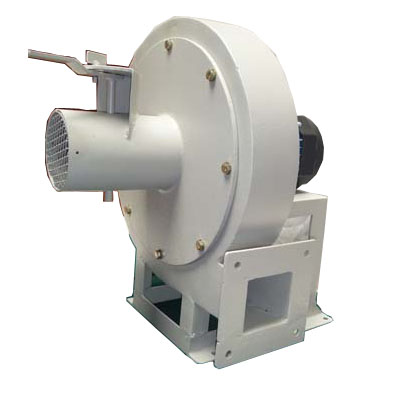

Heavy Duty Centrifugal Blower
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | |
| (CMH) | (CFM) | |||||
| IM 200 T4-0.5HP | 415V, 3Ø, 50Hz | 0.8 | 375 | 1400 | 1000 | 588 |
| IM 200 T2-0.5HP | 415V, 3Ø, 50Hz | 0.8 | 375 | 2800 | 2000 | 1176 |
| IM 250 T4-1HP | 415V, 3Ø, 50Hz | 1.7 | 750 | 1400 | 1300 | 765 |
| IM 250 T2-1HP | 415V, 3Ø, 50Hz | 1.7 | 750 | 2800 | 2650 | 1559 |
| IM 300 T4-2HP | 415V, 3Ø, 50Hz | 3.2 | 1500 | 1400 | 1800 | 1059 |
| IM 300 T2-2HP | 415V, 3Ø, 50Hz | 3.2 | 1500 | 2800 | 3600 | 2118 |
| IM350-3HP | 415V, 3Ø, 50Hz | 4.5 | 2250 | 2800 | 4000 | 2353 |
| IM 550-4HP | 415V, 3Ø, 50Hz | 6 | 3000 | 2800 | 5750 | 3382 |

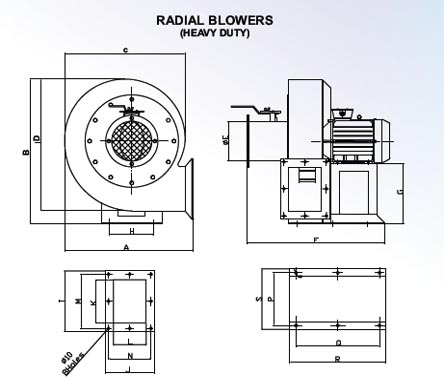

Product Drawing
Dimensional Details
| TYPE | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
| IM 200 0.5HP | 410 | 495 | 375 | 385 | 80 | 430 | 250 | 190 | 200 | 155 | 135 | 90 | 172 | 125 | 190 | 225 | 285 | 210 |
| IM 250 1HP | 425 | 490 | 380 | 425 | 165 | 620 | 210 | 220 | 242 | 242 | 170 | 170 | 212 | 212 | 230 | 320 | 400 | 262 |
| IM 300 2HP | 590 | 700 | 545 | 600 | 200 | 615 | 345 | 210 | 280 | 220 | 208 | 146 | 255 | 195 | 240 | 330 | 400 | 270 |
