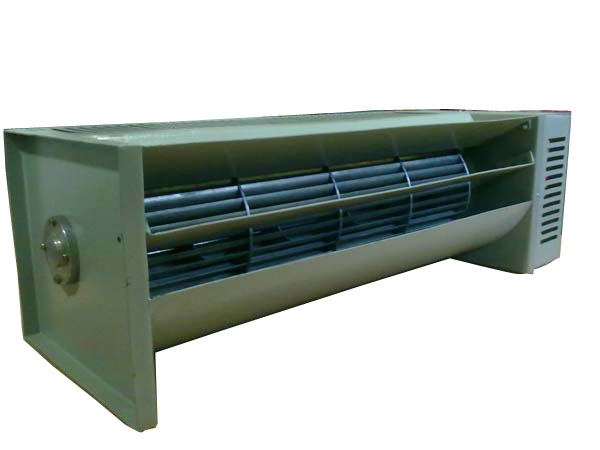

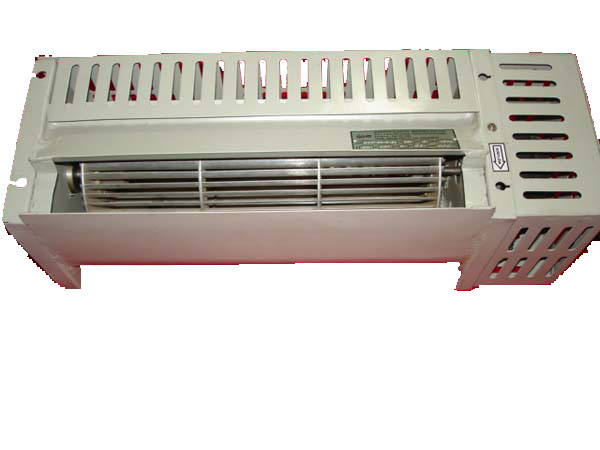

Cross Flow Fan

Cross Flow Fan Cross Flow Fan

Technical Specification

TYPE I/P SUPPLY AMPS
(A)
WATTS
(W)
RPM OUTPUT dBA Cap.
µf
Admissible
Ambient Temp :
Weight
Kg
(CMH) (CFM)
SCF 125 S4 230V, 1Ø, 50Hz 0.2 40 1400 475 279 50 2.5 65 5.5
SCF 150 S4 230V, 1Ø, 50Hz 0.3 80 1350 550 324 50 3.15 65 8.5

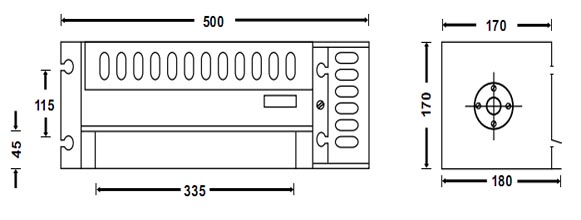

Product Drawing

Product Drawing
