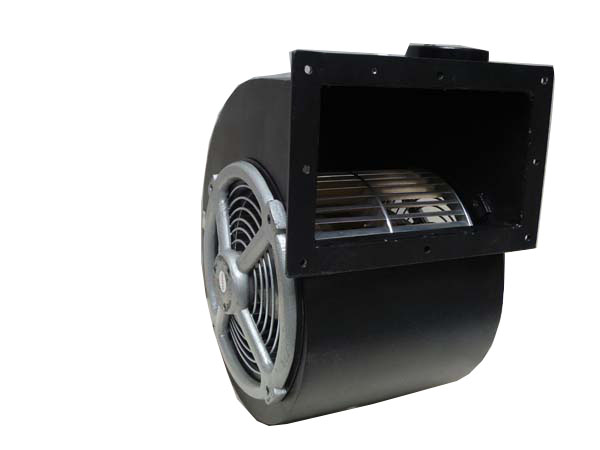

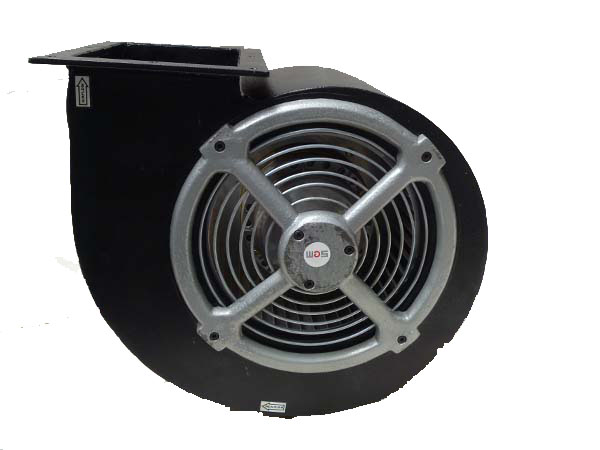

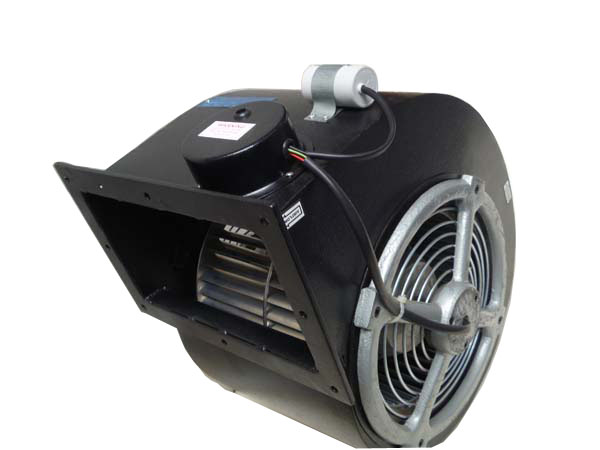

Double Inlet Forward Curved Impeller
200 - 240 Series
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | Static-Pr (mm-wc) |
dBA | Cap. µf |
Admissible Ambient Temp : |
Weight Kg |
|
| (CMH) | (CFM) | ||||||||||
| SDB 200 T24 | 415V, 3Ø, 50Hz | 2.6 | 1500 | 2700 | 2600 | 1529 | 85 | 85 | - | 60 | 18 |
| SDB 220 T2 | 415V, 3Ø, 50Hz | 2.8 | 1600 | 2650 | 2800 | 1647 | 115 | 87 | - | 60 | 19 |
| SDB 220 S4 | 230V, 1Ø, 50Hz | 2 | 400 | 1400 | 1650 | 971 | 30 | 70 | 12.5 | 60 | 16 |
| SDB 220 S4 | 415V, 3Ø, 50Hz | 0.7 | 360 | 1400 | 1650 | 971 | 30 | 70 | - | 60 | 16 |
| SDB 220 S4 | 230V, 1Ø, 50Hz | 3.2 | 750 | 1400 | 2750 | 1618 | 40 | 72 | 15 | 60 | 19 |
| SDB 220 T4 | 415V, 3Ø, 50Hz | 1.2 | 750 | 1400 | 2750 | 1618 | 40 | 72 | - | 60 | 20 |

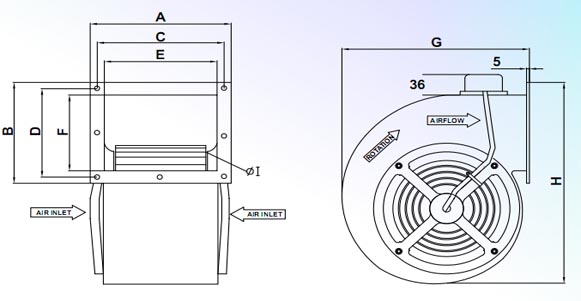

Product Drawing
Dimensional Details
| TYPE | A | B | C | D | E | F | G | H | I |
| SDB 200 T2 | 250 | 200 | 225 | 175 | 200 | 150 | 333 | 398 | 180 |
| SDB 220 Series | 250 | 200 | 225 | 175 | 200 | 150 | 333 | 398 | 170 |
| SDB 240 S4 | 290 | 190 | 265 | 165 | 240 | 140 | 341 | 408 | 200 |
Note: All Dimension are in mm |
|||||||||

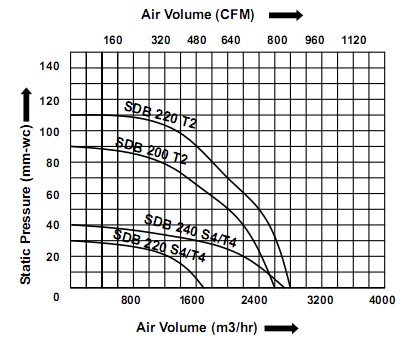

Performance Chart
