Conventional Triple Inlet Double Blower
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | Static-Pr (mm-wc) |
dBA | Cap. µf |
Admissible Ambient Temp : |
Weight Kg |
|
| (CMH) | (CFM) | ||||||||||
| SDB 63 53 S2 | 230V, 1Ø, 50Hz | 0.85 | 200 | 2600 | 650/ 400 | 380 / 235 | 42/38 | 75 | 5 | 75 | 5.3 |

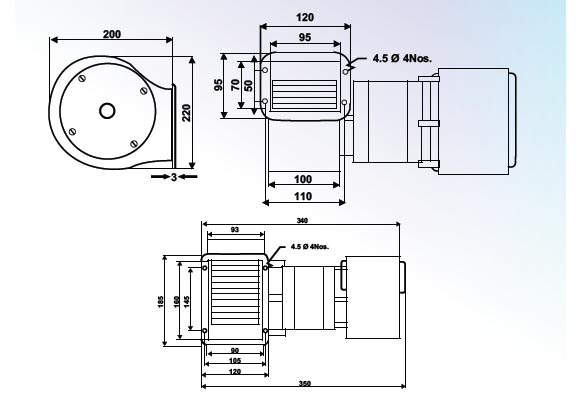

Product Drawing

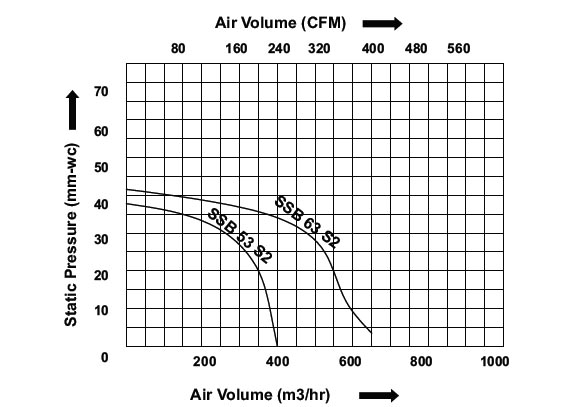

Performance Chart
