Induction Motor
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | Cap. µf |
Admissible Ambient Temp : |
Weight Kg |
| IM 390 S4 | 230V, 1Ø, 50Hz | 0.5 | 110 | 1400 | 4 | 60 | 6 |
| IM 390 T4 | 415V, 3Ø, 50Hz | 0.4 | 100 | 1400 | - | 60 | 6 |
| IM 400 S4 | 230V, 1Ø, 50Hz | 0.45 | 100 | 1450 | 3.15 | 60 | 6.5 |
| IM 23 S4 | 230V, 1Ø, 50Hz | 1.25 | 150 | 1450 | 12.5 | 60 | 4.5 |
| IM 23 S2 | 230V, 1Ø, 50Hz | 2.2 | 350 | 2900 | 25 | 60 | 8.2 |
Note: All the above values obtained in no load condition |
|||||||

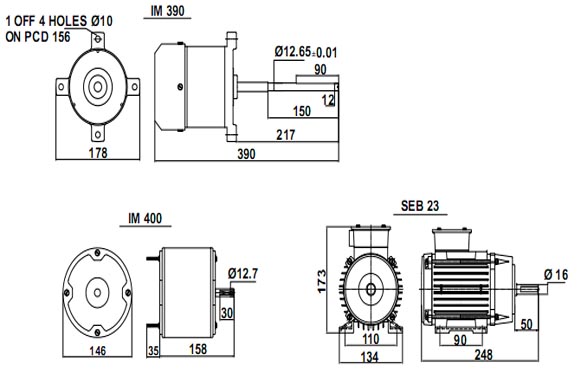

Product Drawing
