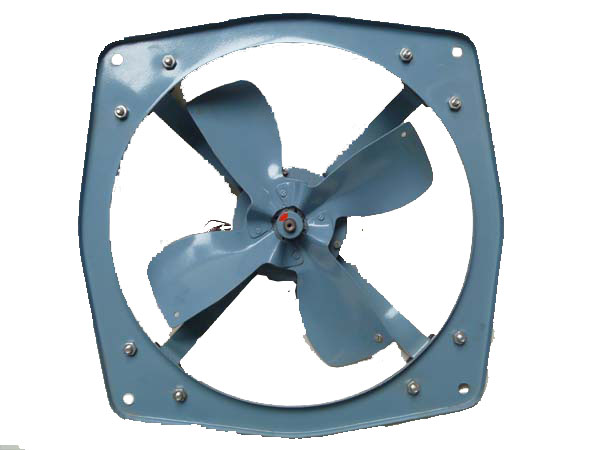

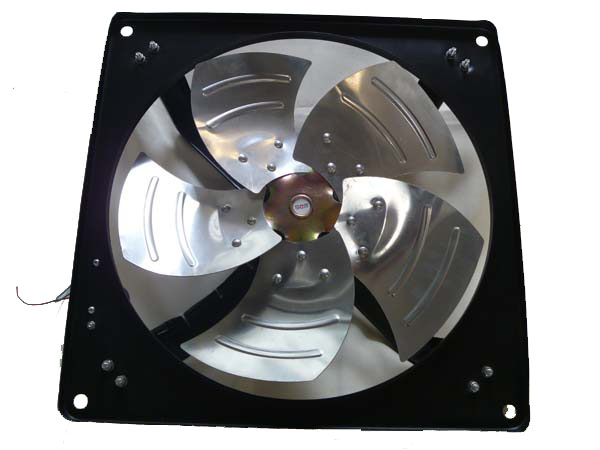

Conventional Exhaust Fan
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | Static-Pr (mm-wc) |
dBA | Cap. µf |
Admissible Ambient Temp : |
Weight Kg |
|
| (CMH) | (CFM) | ||||||||||
| IM 300 S4 | 230V, 1Ø, 50Hz | 0.3 | 75 | 1440 | 1900 | 1118 | 50 | 68 | 2 | 60 | 4.6 |
| IM 300 B4 | 230V, 1Ø, 50Hz | 0.3 | 80 | 1440 | 2200 | 1294 | 55 | 68 | 2 | 60 | 4.6 |

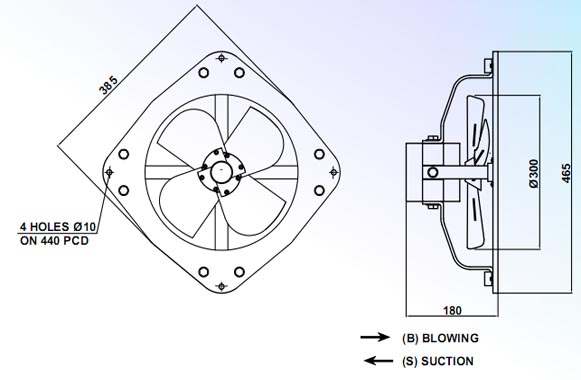

Product Drawing

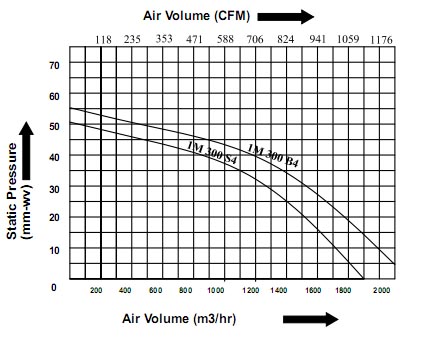

Performance Chart
