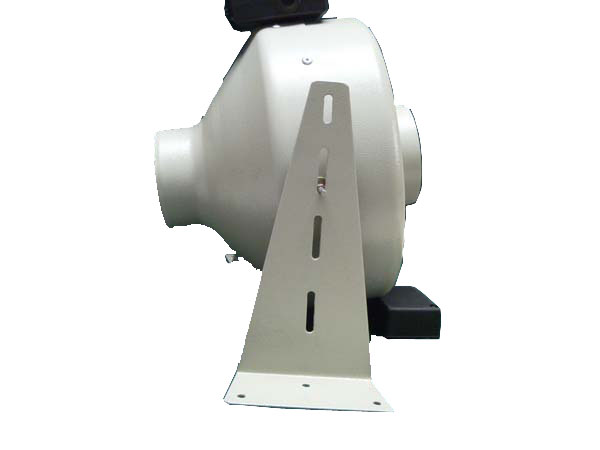

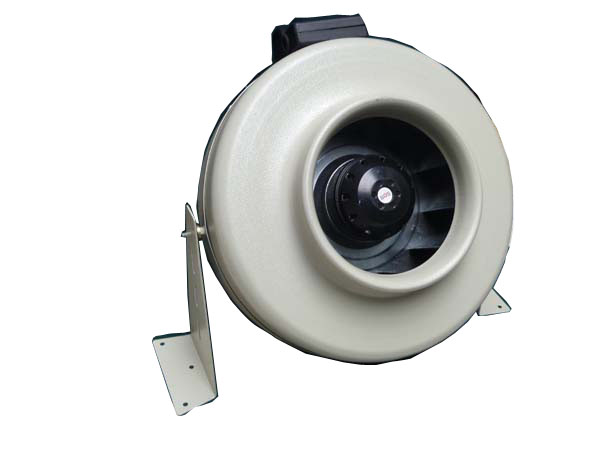

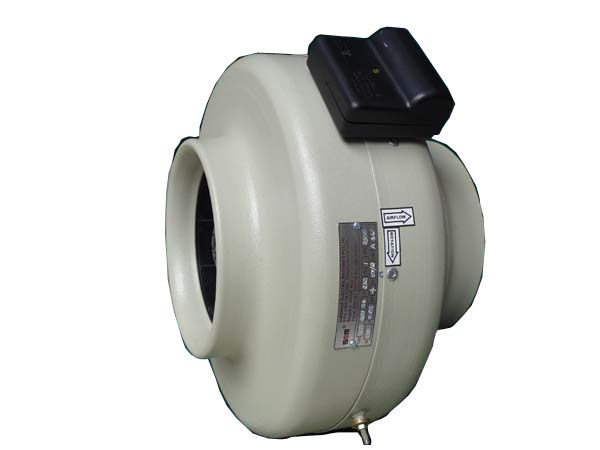

In-line Duct Fan
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | Static-Pr (mm-wc) |
dBA | Cap. µf |
Admissible Ambient Temp : |
Weight Kg |
|
| (CMH) | (CFM) | ||||||||||
| SID 100 S2 | 230V, 1Ø, 50Hz | 0.4 | 100 | 2450 | 300 | 176 | 30 | 52 | 2 | 70 | 3.5 |
| SID 100 S4 | 230V, 1Ø, 50Hz | 0.3 | 70 | 1400 | 175 | 103 | 16 | 52 | 2 | 70 | 3.5 |
| SID 150 S2 | 230V, 1Ø, 50Hz | 0.45 | 120 | 2600 | 650 | 382 | 38 | 54 | 2.5 | 70 | 4.5 |
| SID 150 T2 | 415V, 3Ø, 50Hz | 0.17 | 85 | 2600 | 650 | 382 | 38 | 56 | - | 70 | 4.5 |
| SID 200 S2 | 230V, 1Ø, 50Hz | 0.6 | 150 | 2600 | 1100 | 647 | 50 | 60 | 4 | 70 | 6 |
| SID 200 T2 | 415v, 3Ø, 50Hz | 0.3 | 150 | 2500 | 1120 | 659 | 50 | 60 | - | 70 | 6 |
| SID 250 S2 | 230V, 1Ø, 50Hz | 0.65 | 160 | 2650 | 1600 | 941 | 55 | 63 | 5 | 70 | 6.2 |

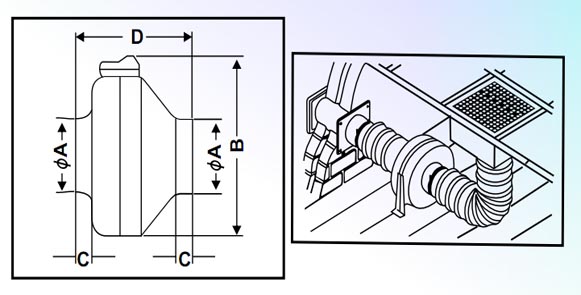

Product Drawing
Dimensional Details
| TYPE | A | B | C | D |
| SID 100 S2/S4 | 97 | 320 | 30 | 240 |
| SID 150 S2/t2 | 147 | 360 | 30 | 250 |
| SID 200 S2/T2 | 197 | 404 | 35 | 250 |
| SID 250 S2 | 247 | 404 | 35 | 260 |
| 9EC SERIES | 109 | 140 | 90 | 120 |
Note: ALL DIMENSIONS ARE IN mm |
||||

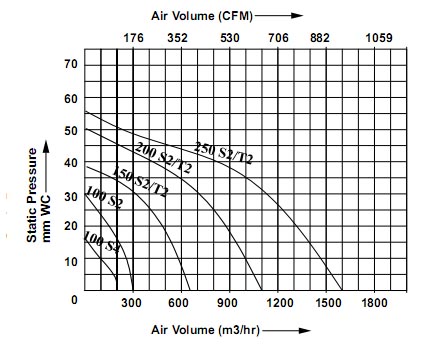

Performance Chart
