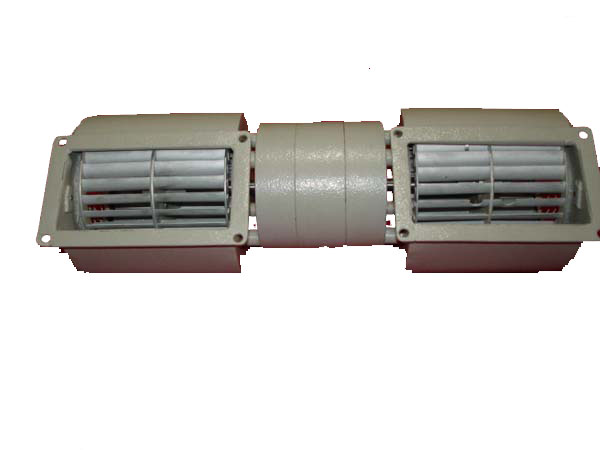

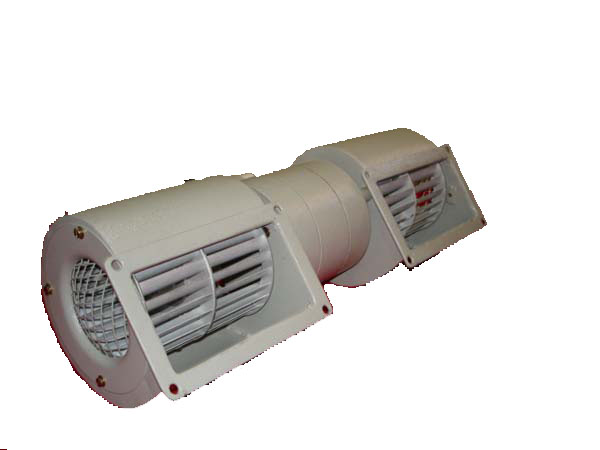

Conventional Double Inlet Double Blower
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | Static-Pr (mm-wc) |
dBA | Cap. µf |
Admissible Ambient Temp : |
Weight Kg |
|
| (CMH) | (CFM) | ||||||||||
| SDB 53 S2 | 230V, 1Ø, 50Hz | 0.6 | 150 | 2800 | 800 | 471 | 40 | 77 | 5 | 75 | 4.5 |
| SDB 53 S4 | 230V, 1Ø, 50Hz | 0.25 | 60 | 1400 | 350 | 206 | 15 | 60 | 2 | 75 | 4.5 |
| SDB 55 S2 | 230V, 1Ø, 50Hz | 0.75 | 170 | 2800 | 1150 | 676 | 40 | 75 | 5 | 75 | 5 |
| SDB 60 S2 | 230V, 1Ø, 50Hz | 0.9 | 220 | 2600 | 1250 | 735 | 45 | 80 | 5 | 75 | 5.3 |

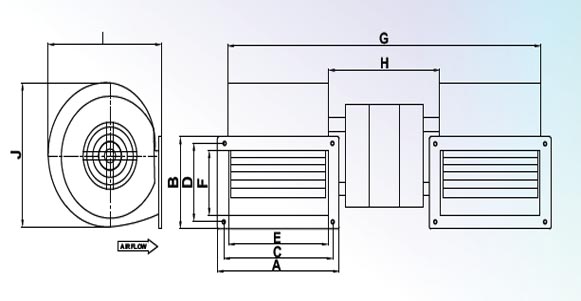

Product Drawing
Dimensional Details
| TYPE | A | B | C | D | E | F | G | H | I | J |
| SSB 53 (DI) | 122 | 98 | 110 | 50 | 96 | 72 | 225 | 140 | 148 | 75 * 75 |
| SSB 55 (DI) | 162 | 96 | 148 | 84 | 135 | 70 | 260 | 139 | 145 | 75 * 75 |
| SSB 60 (DI) | 125 | 120 | 110 | 50 | 96 | 94 | 225 | 160 | 170 | 90 * 90 |
| SSB 63 (DI) | 120 | 186 | 105 | 145 | 90 | 160 | 228 | 202 | 220 | 105 |

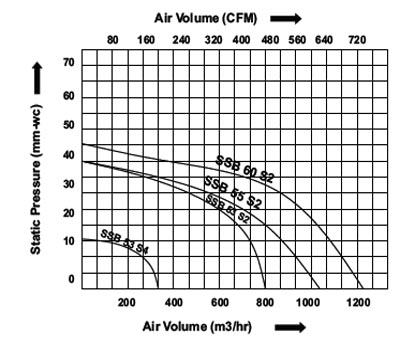

Performance Chart
